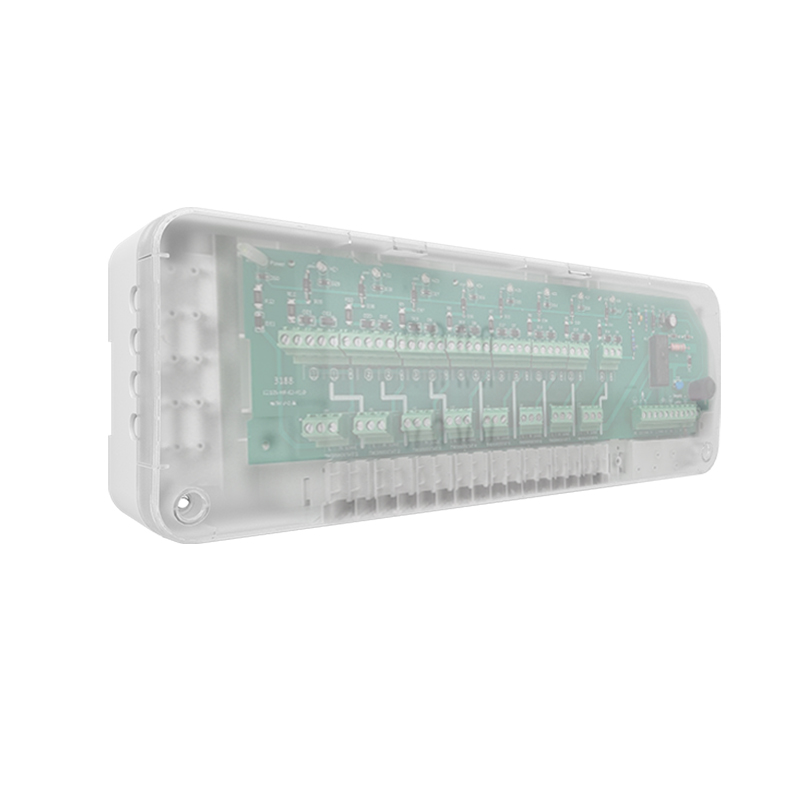

Name: Wired Master Controller Hydronic Floor Heating Thermostat
Brand: E-TOP HVAC OEM & ODM Thermostat
SKU: HR-02-C
Availability: InStock
Rating: 5 (1 reviews)

Home

Wiring Centre

Wired Master Controller Hydronic Floor Heating Thermostat

Description

Always your partner and technical backing

As a production-oriented enterprise with independent research and development, E-top focuses on providing customers with solutions and product customization services in the HVAC industry, and provides customers with a full range of technical support.

19+

Production Experience year

65000

Qty/month

Lead time

Warranty

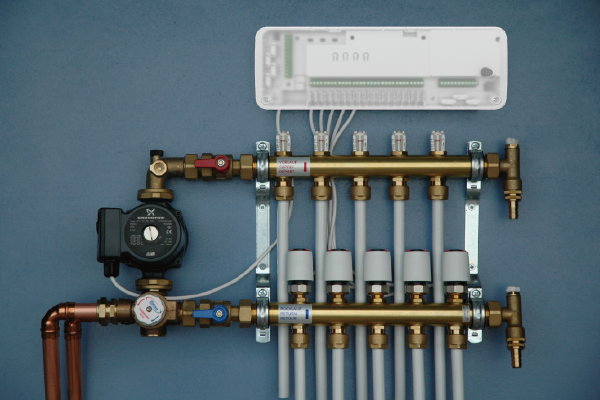

Standard application for hydronic heating

The wiring center and thermostat pack, is neccessary for the hydronic water heating system, for engery saving. each zone of the wiring center will control the actuators on and off according to thermostat's setting.

Wireless commnication with thermostats

The 230V 8zones controls box work with thermostats via radio frequency, generally are 868MHz and 433MHz.There is no need to consider the problem of wiring pre-embedding, and it is suitable for both new and old buildings.

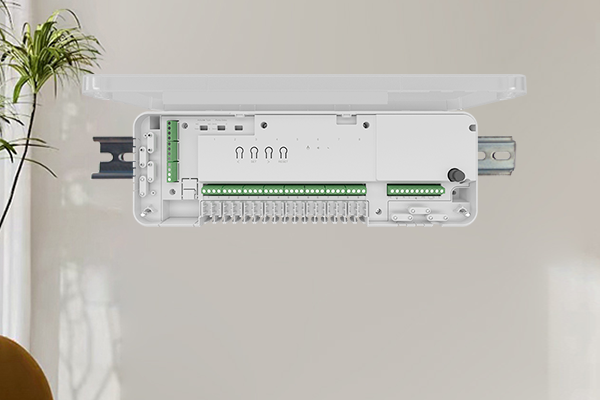

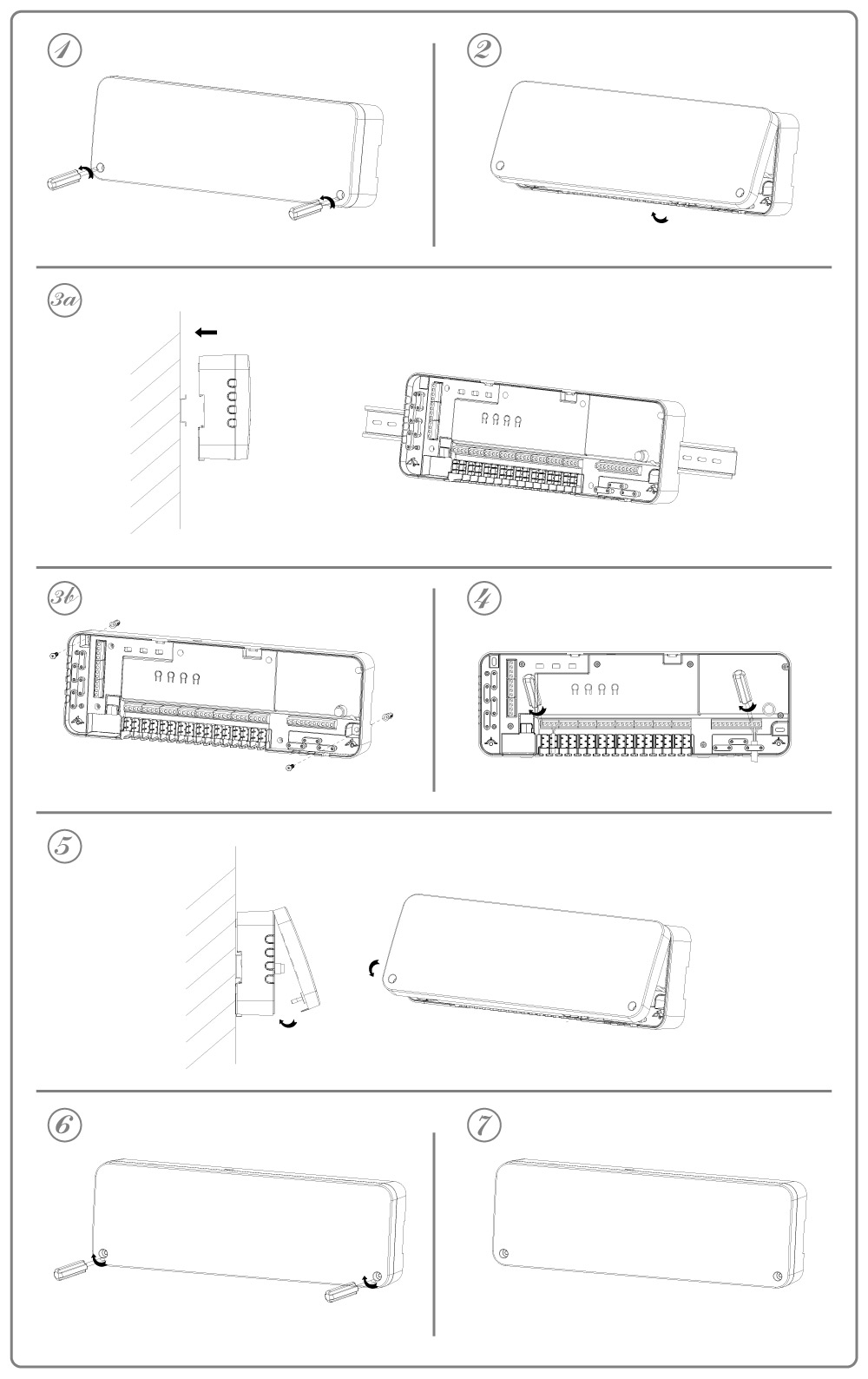

Adapt to DIN rail mounting

DIN rail is a German industrial standard, the use of rail is a way of installation of industrial electrical components, the installation of electrical components that support this standard can be easily snapped on the rail without screws, maintenance is also very convenient.
HR-02 was design for this. with 2pcs snap, and passed the corresponding tensile and strength tests. Din rail TH 35-7.5 are suiatble.

Specification

Power supply	AC85~250V,50/60Hz
Max. load	5(2)A/channle
Application	Underfloor water heating, connect to actuator and manifold
Color	Grey
Wireless frequency	868MHz/433MHz
Wireless diatance	120m in open place
Boiler output	Voltage-free
Pump output	AC230V
Main cable	1m with EU/UK/CH plug type

Material	ABS+PC (fire resistance )
protection class	IP20

Wiring Example

Dimension
