Square Simple Mechanical Dial Thermostat

This mechanical dial thermostat is a simple yet functional device primarily used to control the operating temperature of a heating or cooling system. Here is a detailed description of this thermostat:

Structure and appearance design:

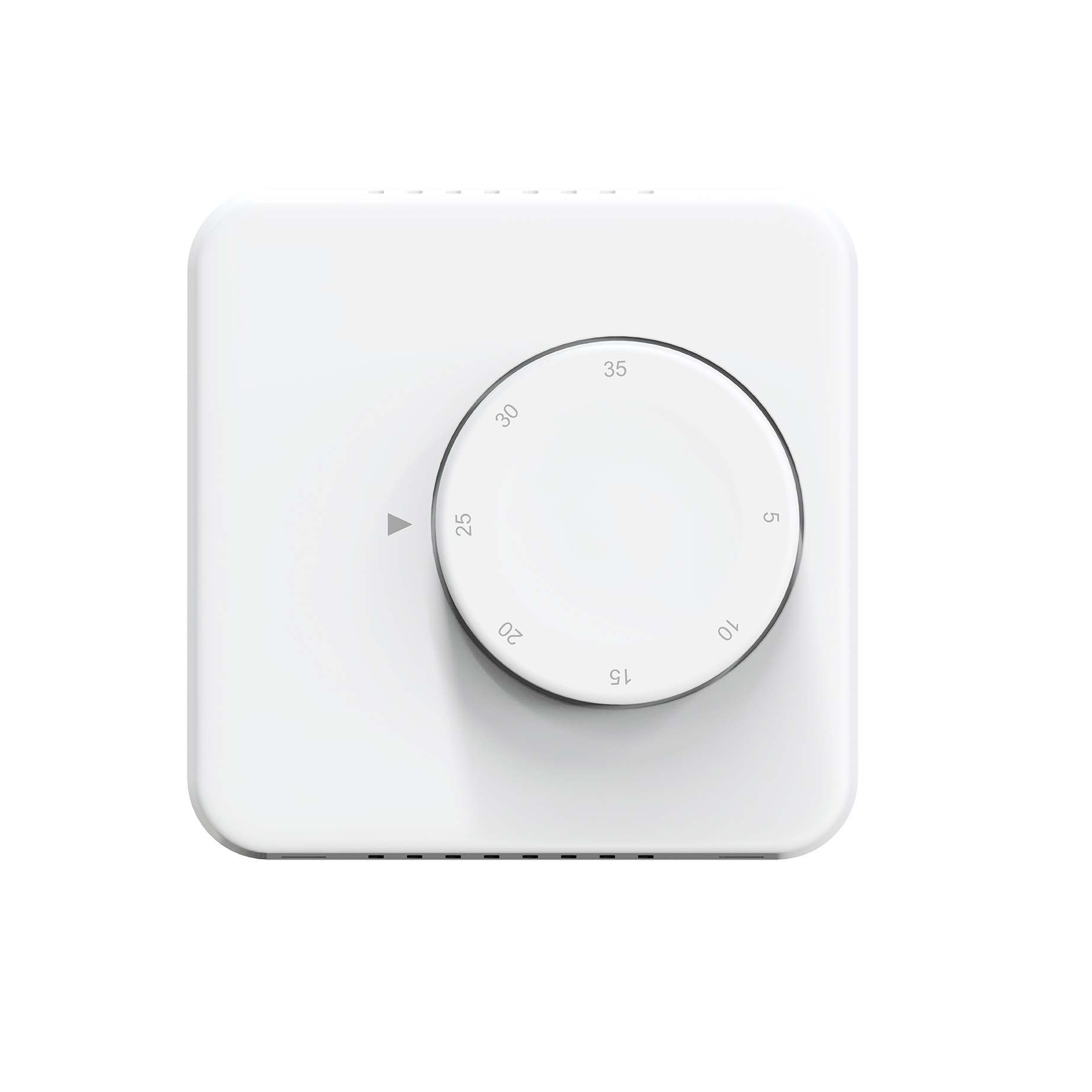

This thermostat uses a circular dial as its main appearance design, with a diameter of about 15 cm and a temperature scale of 5-35 degrees engraved on the surface. There is a pointer in the center part to indicate the currently set temperature. On the edge of the dial, there is a small display that shows the current temperature and the set temperature.

working principle:

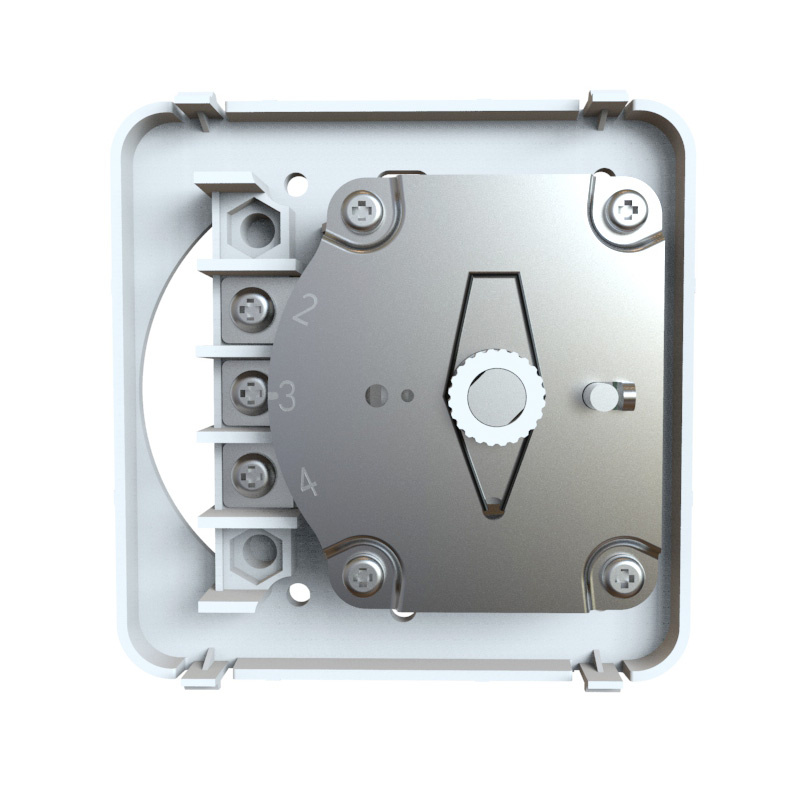

This thermostat uses a mechanical working principle to set the desired temperature by turning the dial. When the temperature reaches the set value, the pointer will move to the corresponding position and trigger the internal mechanical device to stop the heating or cooling system. When the temperature deviates from the set value, the pointer moves again and the heating or cooling system is activated.

Instructions:

Users can set the desired temperature by turning the dial. When setting the temperature, the pointer will move as the dial turns and stop when it reaches the set temperature. Users can also view the current temperature and set temperature through the display.

Features and advantages:

This thermostat has the following features and advantages:

Simple and easy to use: Users can easily set the temperature by turning the dial without complicated operations.

High stability: Due to the mechanical working principle, this thermostat has high stability and is not easily affected by electrical interference.

Durable: Due to its mechanical components, this thermostat is highly durable and can be used for many years.

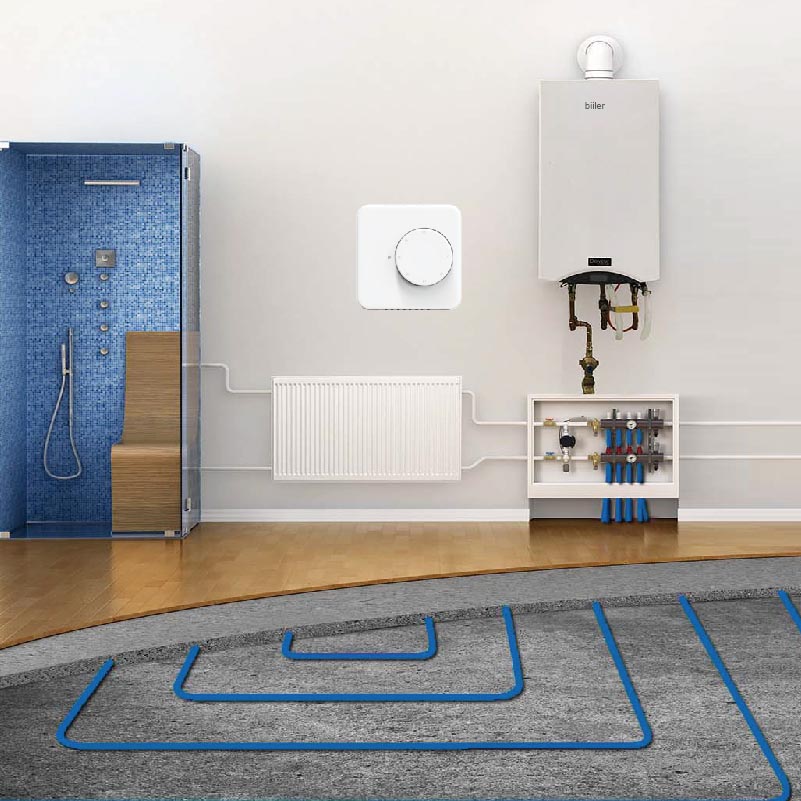

Suitable for a variety of occasions: Due to its simple and practical features, this thermostat is suitable for operating temperature control of a variety of heating or cooling systems.

Overall, this mechanical dial thermostat is a simple, functional, durable and easy-to-use device for a variety of systems that require heating or cooling.

Specification
